BASE UNIT	4tvpUBD
GARMENT 2 SECTORS FOOT - CALF SINGLE PATIENT (PAIR)	PROGC2
GARMENT 2 SECTORS FOOT - CALF MULTI PATIENT (PAIR)	PROGC2P
GARMENT 2 SECTORS CALF - THIGH SINGLE PATIENT (PAIR)	PROGL2
GARMENT 2 SECTORS CALF - THIGH MULTI PATIENT (PAIR)	PROGL2P
CONNECTION SET DOUBLE GARMENT	4tvpSD2
CONNECTION SET SINGLE GARMENT	4tvpSD1
OPERATING ROOM EXTENSION SET	4tvpSP

USE AND INDICATIONS

Digital sequential system for the mechanical prevention of Deep Vein Thrombosis (DVT).
Digital display shows all preset functions and actual operating pressure, as well as treatment and remaining times.
Manual function with operator deactivation. Possibility to select the compression phase timing.
Programmable alarms (audible and automatic shutdown) for unscheduled pressure increases or decreases.
It consists of a pump that generates a constant-flow pressure wave, with an operating cycle programmed for 120 seconds, of which 40 are compression (programmable) and 80 are decompression/rest.
Programmable pressure range: 0 - 80 mmHg, on one or two terminals simultaneously.

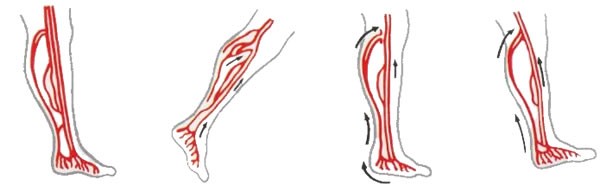

To avoid venous stasis, the system, through the sequential cycle, reproduces the same distal-proximal thrust mechanism as walking (foot pump and calf pump), through a sock that acts by compressing first the sole of the foot (one section), and then the calf (one section).

The pressure wave is distributed within two pneumodistension chambers: one under the foot, to simulate the foot pump, and one under the calf, to simulate the muscle contraction that occurs during walking. A shoe with two
under-foot sections is alsoavailable when it is not possible to use the calf for technical reasons, or a calf band,
also consisting of two sections, that leaves the foot free, very practical in the surgical field.
D.A.S.C. System (Distribution by Communicating Sectors): this system, unique to Fisiopress, ensures consistently uniform pressure in all chambers as they fill with air, allowing the terminals to adapt to the geometry of the treated limb and compress it uniformly without the risk of stagnation or reverse flow.
MEDICAL CE MARK

THERAPEUTIC ACTIONS

• Venous Stasis
• Venous velocity is increased
• Venous flow is increased
• Venous dilation is contained Lymphatic Stasis
• Lymphatic flow is reactivated
• Any lymphatic edema is reabsorbed Fibrinolytic Activity
• Local fibrinolytic activity is stimulated Venous Wall
• The wall itself is contained

TECHNICAL FEATURES

• Sequential pressotherapy with distal-proximal pressure gradient.
• Portable-professional system, equipped with two sequential outputs, capable of
treating one or two limbs simultaneously.
• Backlit digital display for viewing pressure values, programmed treatment time and
remaining time, and preset alarm thresholds.
• Graph of pressures and programmable functions.
• High pressure alarms (audible and automatic shutdown).
• Low pressure alarms (audible, for disconnection of the connection, etc.)
• Electronic adjustment of treatment time, both automatic and manual. • Pressure
range: 0 - 80 mm Hg on two terminals simultaneously.
• Operating cycle: 2 minutes.
• D.A.S.C. system (Distribution by Communicating Sectors): this system, unique to
Fisiopress, ensures consistently uniform pressure in all chambers as they fill with air.
This allows the terminals to adapt to the geometry of the treated limb and compress
it uniformly without the risk of stagnation or reverse flow.
• Terminals available for the lower limb: ion therapy and multitherapy knee-high
socks.
• Option of individually replacing each internal pneumatic bag.
• Medical CE mark
